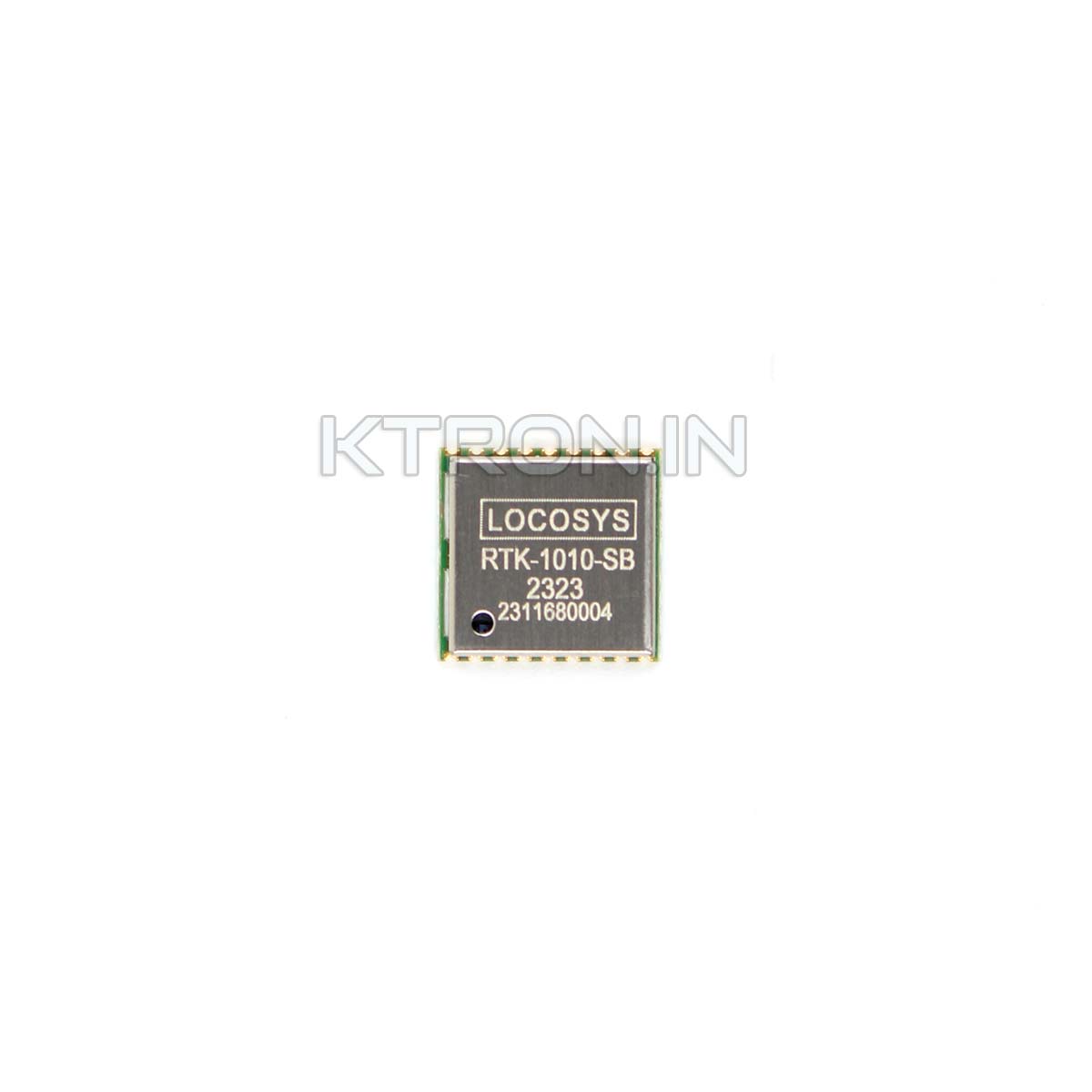

RTK-1010-SB Single Frequency GNSS RTK Module – LOCOSYS

RTK-1010-SB Single Frequency GNSS RTK Module – LOCOSYS

28 in stock

Rs. 2,408.00 INR
Rs. 2,408.00 INR
Sale Sold out
Shipping calculated at checkout.

RTK-1010-SB Single Frequency GNSS RTK Module is a high-performance single-frequency GNSS RTK module that designed for applications requiring centimeter level positioning accuracy. It adopts 12 nm process and integrates efficient power management architecture to perform low power and high sensitivity.

The module supports concurrent reception of GPS/QZSS, GLONASS, GALILEO, BEIDOU and NAVIC to improve the availability and reliability of RTK solution even in the harsh environment.

FEATURES

  • Single-frequency and multi-constellation RTK positioning solution
  • Support GPS/QZSS, GLONASS, GALILEO, BEIDOU and NAVIC
  • Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Support 75-channel GNSS
  • Low power consumption
  • Fast TTFF at low signal level
  • Small form factor 10.1 x 9.7 x 2.2 mm
  • SMD type with stamp holes; RoHS compliant

APPLICATIONS

  • Precision Agriculture
  • Structural / Land Monitoring
  • Offshore / Marine Application

Specification

Weight 2.5 g
