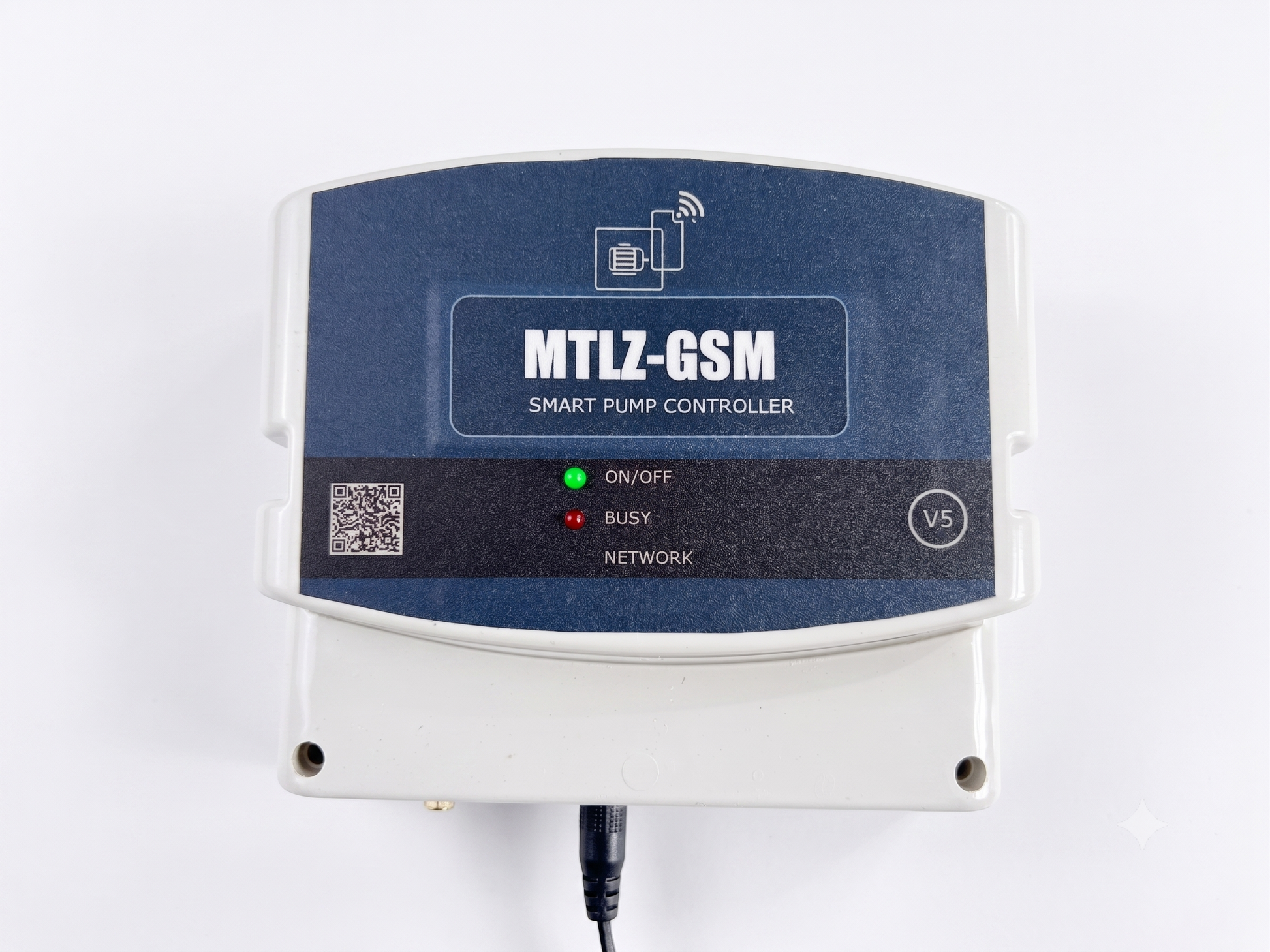

GSM BASED SMART PUMP CONTROLLER

The MTL-GSM-PUMP-7A is a GSM-based smart pump controller that allows users to control and monitor their water pump remotely using a mobile app. The controller supports multiple mobile network operators and provides essential pump protection features such as overload and dry-run protection. It can be used with single-phase and three-phase pump systems, with dedicated starting capacitor control for single-phase motors.

Features

·        Remote Pump Control – Turn the pump ON/OFF from anywhere using the mobile app.

·        Mobile App Monitoring – Monitor pump status remotely through the mobile application.

·        Overload Protection – Helps protect the pump against excessive current conditions.

·        Dry-Run Protection – Helps protect the pump when water is unavailable.

·        Multi-Network SIM Support – Compatible with Jio, BSNL, Vi, and Airtel SIM cards.

·        Programmable OFF Timer – Automatically switches OFF the pump after the programmed time.

·        Single & Three-Phase Pump Compatible – Can be integrated with both single-phase and three-phase pump systems.

·        Starting Capacitor Control – Provides automatic starting capacitor control for single-phase motors.

·        Status LED Indicators – LED indications provide clear operating and status information.

·        External GSM Antenna – Supplied with an external antenna and 1-meter antenna cable for improved signal reception and installation flexibility.

·        Remote Operation – Control the pump without being physically present at the pump location.

Technical Specifications

Product Note

For three-phase pumps, the controller should be used to operate an appropriately rated external contactor, rather than switching the three-phase motor directly through the onboard 7A relay.
